ASUS PRIME B850M-K - PCIe 5.0 Slot - 2.5Gb Ethernet - USB 10Gbps Type-A - USB 5Gbps Type-C -
8+2+1 Phase Digital Power Design - Aura Sync
Specifications
CPU :
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series
Memory :
- 2 x DIMM slots, max. 128GB, DDR5 Supports up to8200+MT/s(OC
Graphics :
- 1 x DisplayPort**
- 1 x HDMI™ port***
Ethernet :
- 1 x Realtek 2.5Gb Ethernet
USB :
Rear USB (Total 8 ports)
- 2 x USB 10Gbps ports (2 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 5Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports :
- 2 x USB 10Gbps ports (2 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 3 x 4-pin Chassis Fan headers
Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
Storage Related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
USB
- 1 x USB 5Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
- 3 x Addressable RGB Gen 2 headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin System Panel header
BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
-------------------------------------
Warranty
- 3 Years With Warranty of the Authorized Agent
- Part Number : 90MB1LV0-M0EAY0
- Model : PRIME B850M-K

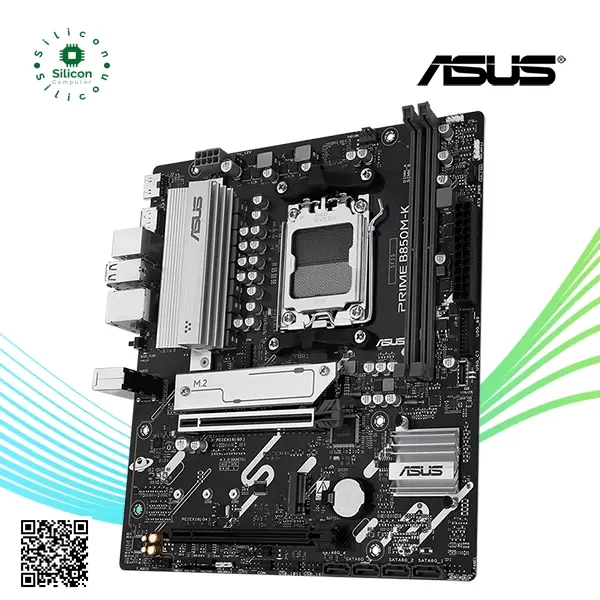

ASUS PRIME B850M-K
SKU: 90MB1LV0-M0EAY0
EGP 5,499.00Price
