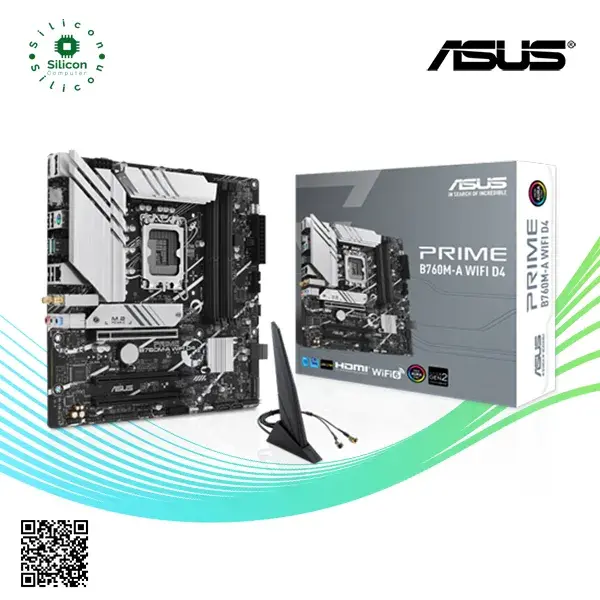

ASUS PRIME B760M-A WIFI D4

Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

Specifications

Model

  • PRIME B760M-A WIFI D4

CPU

  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors

Chipset

  • Intel® B760 Chipset

Memory

  • 4 x DIMM, Max. 128GB, DDR4

Graphics

  • 1 x DisplayPort**
  • 2 x HDMI® ports

Ethernet

  • 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

  • Wi-Fi 6
  • Bluetooth v5.2

-------------------------------------

USB

Rear USB (Total 6 ports)

  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 10 ports)

  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC

-------------------------------------

Back Panel I/O Ports

  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 2 x HDMI® ports
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector

Storage related

  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function

-------------------------------------

Warranty

  • 3 Years With Warranty of the Authorized Agent
  • Part Number :  90MB1CX0-M1EAY0
  • Model : PRIME B760M-A WIFI D4

ASUS PRIME B760M-A WIFI D4

SKU: 90MB1CX0-M1EAY0
EGP 6,499.00Price
Quantity
Out of Stock
    No Reviews YetShare your thoughts. Be the first to leave a review.

    Brand: ASUS


    Fast Delivery

    All Over Egypt
