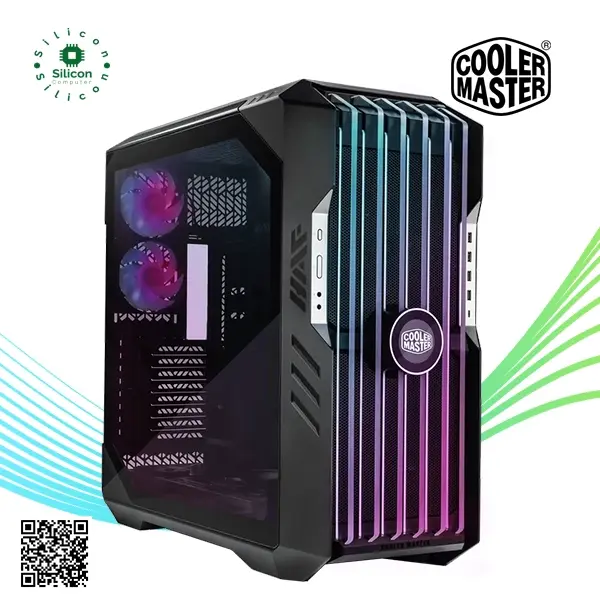

Cooler Master  HAF 700 EVO - Black

Materials - Exterior
Mesh, Steel, Plastic
Materials - Left Side Panel
Tempered Glass, Steel
Dimensions
(L x W x H)556 x 279 x 540 mm
(Body Size), 666 x 291 x 626 mm
(incl. Protrusions)
Motherboard Support
Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB
Expansion Slots
8
5.25" Drive Bays
N/A
2.5" / 3.5" Drive Bays (Combo)12
2.5" Drive Bays
12
I/O Panel - USB Ports1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0)
I/O Panel - Audio In / Out1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack
I/O Panel - Other1x LED Controller A1 (ARGB Gen2), 1x ARGB/PWM Hub
Pre-installed Fans - FrontHAF 700 EVO: 2x SickleFlow PWM Performance Ed. 200mm, HAF 700 EVO White: 2x SickleFlow White PWM Performance Ed. ARGB 200mm
Pre-installed Fans - RearHAF 700 EVO: 2x SickleFlow PWM ARGB 120mm, HAF 700 EVO White: 2x SickleFlow White PWM ARGB 120mm
Pre-installed Fans - BottomHAF 700 EVO: 1x SickleFlow PWM ARGB 120mm, HAF 700 EVO White: 1x SickleFlow White PWM ARGB 120mm
Fan Support - Top
2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket)
Fan Support - Front
2x 200mm, 3x 120/140mm
Fan Support - Rear
2x 120mm
Fan Support - Bottom
3x 120/140mm
Fan Support - Side
4x 120mm / 3x 140mm
Radiator Support - Top
Up to 2x 360mm / 1x 420mm
Radiator Support - Front
Up to 420/360mm
Radiator Support - Rear
Up to 240mm
Radiator Support - Bottom
Up to 420/360mm
Radiator Support - Side
Up to 480/420mm
Clearance - CPU Cooler
166mm / 6.53"
Clearance - PSU
200mm / 7.87"
Clearance - GFX
490mm / 19.29"
Cable Routing - Behind Motherboard Tray90-101mm
Included Accessories
HAF 700 EVO: Vertical Graphics Card Holder V3 (Include 165mm PCIe 4.0 Riser Cable), HAF 700 EVO White: Universal Graphics Card Holder Kit V3 White
Dust Filters
Front, Bottom, Side
Power Supply Support
Bottom Mount, ATX
Warranty2 years
Size
Full Tower
SeriesHAF Series
