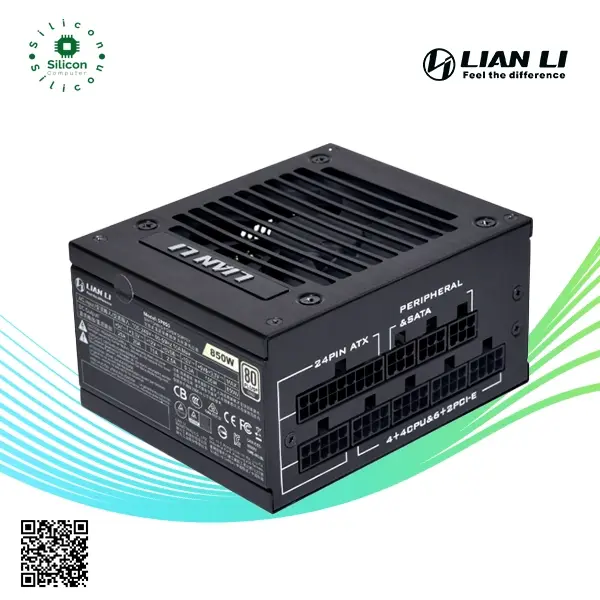

Lian Li Sp850 V2 850W 80 Plus Gold ATX3.1 Full Modular SFX Power Supply
Specifications
Model Name : SP850 V2 Gold
Model No : SP850G BLACK
DIMENSIONS :(W)125 mm X (H)63.5 mm X (D)100 mm
PSU DESIGN : Fully Modular
COLOR : Black
MATERIAL : SECC
FORM FACTOR : SFX
CERTIFICATION : 80 PLUS Gold
-----------------------
MAX. DC OUTPUT : 850W
COMBINED +3.3V & +5V : 100W
COMBINED +12V : 840W
INPUT VOLTAGE : 100-240Vrms
INPUT FREQUENCY RANGE : 50Hz-60Hz
PFC : Active PFC(PF)>0.90 at full load
EFFICIENCY : 93.53% MAX
PROTECTIVE CIRCUIT : OCP / OVP / OTP / OPP / SCP / UVP / NLP / SIP
-----------------------
CONNECTORS :
1 x 24/20-Pin Motherboard Connector (300mm) x 1 pcs
1 x 8/4+4 Pin CPU/ATX 12V Connector (600mm) x 2 pcs
1 x 8/6+2 Pin PCle Connector (400mm) x 1 pcs
2 x 8/6+2 Pin PCle Connector (400mm-120mm) x 1 pcs
4 x SATA Connector (120mm120mm) x 2 pcs
4 x 4-Pin Peripheral Connector (120mm-120mm) x 1 pcs
12VHPWR Connector (400mm) × 1 pcs
-----------------------
NOISE LEVEL : 40dBA @ 25℃
FAN RPM : 3000RPM
FANLESS MODE : Yes
