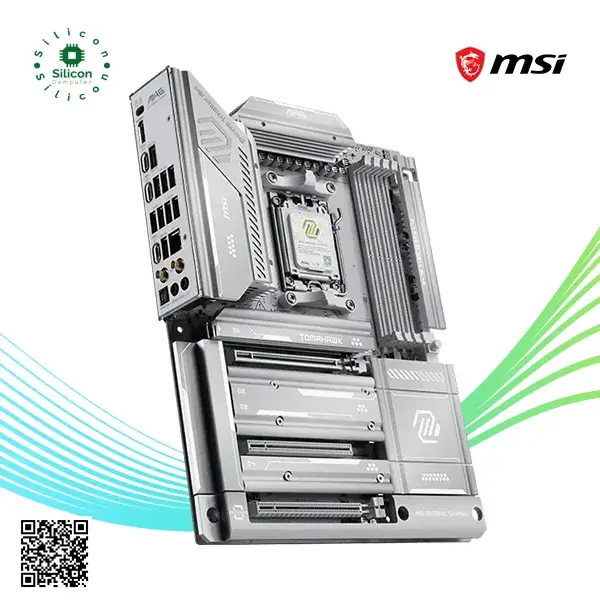

MSI MAG X870E TOMAHAWK MAX WIFI PZ
Specifications
VRM Ultra Performance: 14+2+1
Chipset : AMD X870E
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series
Memory :
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400
Onboard Graphics :
1x HDMI
2x Type-C DisplayPort
Slot :
3x PCI-E x16 slot
PCI_E1 slot
Audio :
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
---------------------
USB :
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
-------
LAN :
1x Realtek® 8126 5G LAN
WIRELESS LAN & BLUETOOTH :
Wi-Fi 7
Supports Bluetooth® 5.4**, MLO, 4KQAM
-------------------
Internal IO :
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x Direct OC Jumper (JBCLK)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
------------------------------
Product Number : MAG X870E TOMAHAWK MAX WIFI PZ
Warranty Information
3 Years With Warranty of the Authorized Agent
