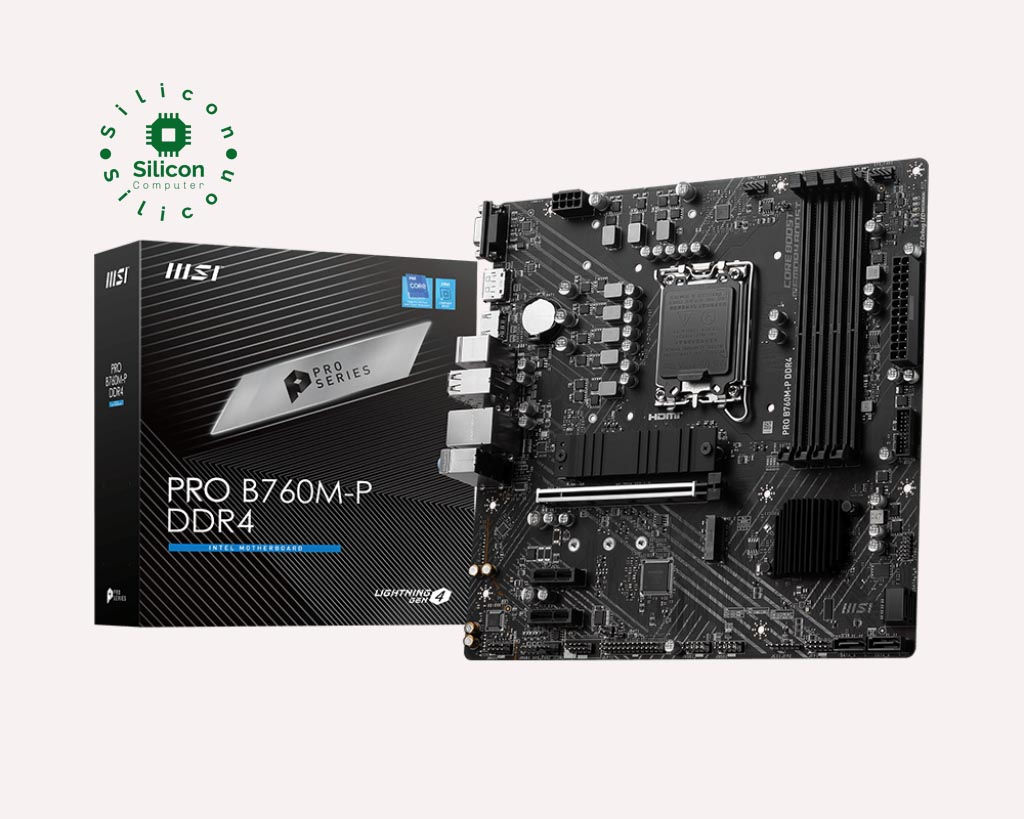

MSI PRO B760M-P DDR4 ProSeries Motherboard Supports 12th 13th Gen Intel Processors LGA 1700 DDR4 PCIe 4.0 M.2 Gbps LAN USB 3.2 Gen2 M-ATX
Specifications
Chipset: Intel B760
Socket: LGA 1700
Supported CPUs:
Intel® Core™ 14th/13th/12th Gen Processors
Intel® Pentium® Gold and Celeron® Processors
Memory
Memory Slots: 4x DDR4
Maximum Memory Capacity: 128GB
Memory Support:
Overclocking frequencies:
1DPC 1R: Up to 4800+ MHz
1DPC 2R: Up to 4600+ MHz
2DPC 1R: Up to 4400+ MHz
2DPC 2R: Up to 4000+ MHz
Supports:
DDR4 speeds: 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4200(OC)/4000(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(JEDEC)/2933(JEDEC)/2666(JEDEC)/2400(JEDEC)/2133(JEDEC)
Dual-Channel mode
Non-ECC, un-buffered memory
Intel® Extreme Memory Profile (XMP)
Onboard Graphics
Video Outputs:
1x HDMI™ (supports HDMI™ 1.4, max resolution 4K @ 30Hz)
1x DisplayPort (supports DP 1.4, max resolution 4K @ 60Hz)
1x VGA (supports max resolutions of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz)
Note: Graphics support depends on the CPU with integrated graphics.
Expansion Slots
PCI Slots:
1x PCI-E x16 slot (Gen 4.0, supports x16 from CPU)
2x PCI-E x1 slots (Gen 4.0 from chipset)
Audio
Audio Codec: Realtek® ALC897
Audio Channels: 7.1-Channel High Definition Audio
Storage
M.2 Slots:
2x M.2 slots:
M.2_1 (from CPU): Supports PCIe 4.0 x4, compatible with 2280/2260/2242 devices.
M.2_2 (from chipset): Supports PCIe 4.0 x4 / SATA mode, compatible with 2280/2260/2242 devices.
SATA Ports: 4x SATA 6G (SATA5 is unavailable when installing M.2 SATA SSD in M2_2 slot)
RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices
USB Ports
Rear:
4x USB 2.0
1x USB 5Gbps Type A
1x USB 10Gbps Type C
Front:
4x USB 2.0
2x USB 5Gbps Type A
Networking
LAN: Realtek® RTL8111H Gigabit LAN
Internal I/O
Connectors:
1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x COM Port (JCOM)
1x RGB LED connector (JRGB)
1x TPM pin header (supports TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED Features
Debugging: 4x EZ Debug LED
