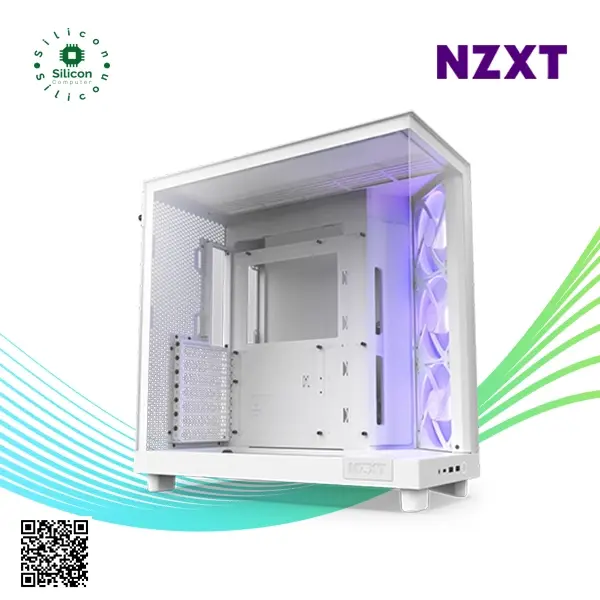

NZXT H6 Flow RGB Compact Dual-Chamber Mid-Tower Airflow Case with RGB Fans White
Specifications
Enclosure Type : Mid-tower
Model : CC-H61FW-R1
Motherboard Support
- ATX,
- Micro-ATX,
- Mini-ITX
Back-Connect : No
Power Supply Type : ATX
Materials :
- SGCC steel, ultra-clear tempered glass, dark tinted tempered glass (black SKU only)
Filters : High-performance mesh
---------------------
Front I/O
- USB 3.2 Type-A : 2
- USB 3.2 Type-C : 1
- Headset Jack : 1
---------------------
Expansion & Drives
- Expansion Slots : 7
- 2.5" Drive Bays : 2
- 3.5" Drive Bays : 1
---------------------
Cooling Support
Front-Right Fans
- 3 x 120 mm (3 included)
Top Fans
- 3 x 120 mm / 2 x 140 mm
Bottom Fans
- 2 x 140 mm
Rear Fan
- 1 x 120 mm
Top Radiator
- Up to 360 mm
Rear Radiator
- Up to 120 mm
---------------------
Included Fan Specs
Model : F120 RGB Core (Case Version)
Quantity : 3
Speed : 1,300 ± 130 RPM
Airflow : 55.17 CFM
Static Pressure : 1.27 mmH₂O
Noise Level : 26.1 dBA
Fan Connector : 3-pin DC
---------------------
Dimensions
Dimensions (H x W x D)
435 x 287 x 415 mm (17.1 x 11.3 x 16.3 in)
Volume : 51.8 L
Weight : 9.4 kg (20.7 lb)
Clearance :
CPU Cooler Height
- 163 mm (6.4 in)
GPU Length
- 365 mm (14.4 in)
PSU Length
- 200 mm (7.9 in)
Cable Routing Space
- 91 mm (3.6 in)
Top Radiator + Fan Thickness
- 30 mm (1.2 in)
---------------------
Warranty
- 2 Years With Warranty of the Authorized Agent
- Part Number : 5056547204062
- Model : CC-H61FW-R1
