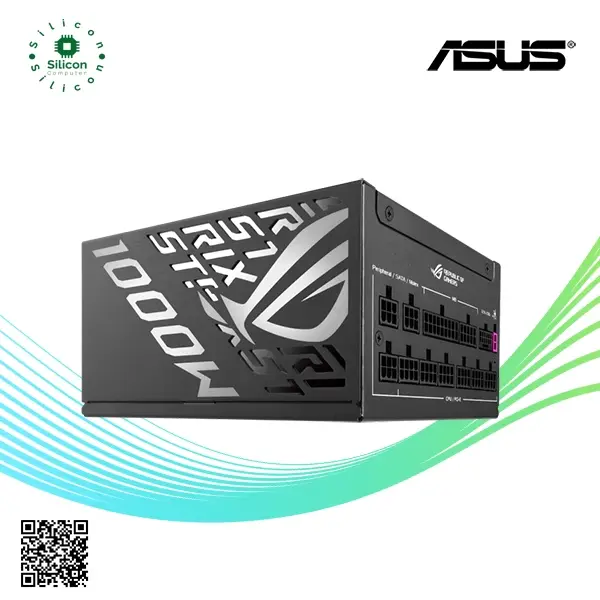

ROG STRIX 1000W Platinum 80 Plus ATX 3.1 PCIe 5.0 Ready
GaN MOSFET
GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer
Large ROG heatsinks
Dual ball fan bearings
ATX 3.1 compatible:
PCIe 5.1 Ready
80 PLUS & Cybenetics Platinum certified
Specifications
Model : ROG STRIX 1000W Platinum
Intel Form Factor : ATX12V
PFC Type : Active PFC
ATX Standard : ATX 3.1
Dimensions : 160 x 150 x 86 mm
Efficiency : 80Plus Platinum
MTBF : >120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials : ROHS
AC Input Range : 100-240Vac
DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
Maximum Load : 25A 25A 83.3A 0.3A 3A
Combined Load : 130W 130W 1000W 3.6W 15W
Total Output : 1000W
------------------------------------
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
------------------------------------
Weight : 1.81 kg (single PSU)
Cybenetics Noise Level Certification : A+
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
