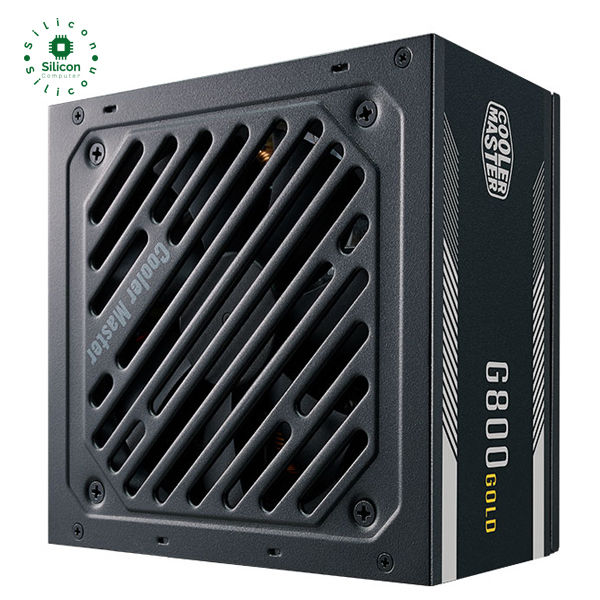

Cooler Master G800 Gold 800W 80 Plus Gold Certified Power Supply ATX
Description
General Specifications
Series: G Series
Power Output: 800W
80 PLUS Rating: Gold
Efficiency: ≥90% @ Typical Load
Modularity: Non Modular
Form Factor: ATX 12V V2.52
Electrical Specifications
Input Voltage: 100-240V
Input Frequency: 47-63Hz
Input Current: 10-5A
Power Good Signal: 100 - 150 ms
Hold Up Time: ≥15ms at 100% load
PFC (Power Factor Correction): Active PFC
Connectors
ATX 24 Pin Connectors: 1
EPS 4+4 Pin Connectors: 1
EPS 8 Pin Connector: 1
PCI-e 6+2 Pin Connectors: 4
SATA Connectors: 6
Peripheral 4 Pin Connectors: 3
Physical Specifications
Dimensions (L x W x H): 140 x 150 x 86 mm
Fan Size: 120mm
Fan Bearing Type: HDB (Hydro Dynamic Bearing)
Operating Temperature: 0-40°C
MTBF (Mean Time Between Failures): >100,000 Hours
Regulatory & Compliance
Regulatory Approvals: CCC, CE, EAC, cTUVus, FCC, BSMI, CB, TUV, RoHS2.0, KC+KCC, BIS
ErP 2014 Lot 3: Yes
Protections

Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Current Protection (OCP)
Over Temperature Protection (OTP)
