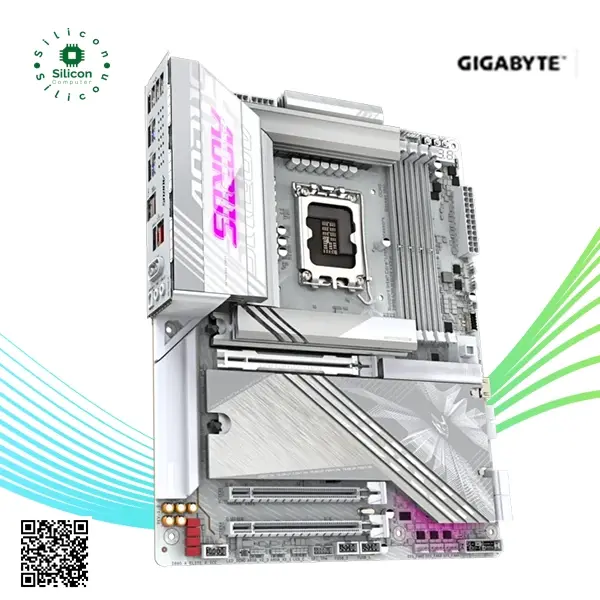

GIGABYTE Z890 AORUS ELITE X ICE
Specifications
Model
Z890 AORUS ELITE X ICE
CPU Support
Intel® Core™ Ultra processors (Series 2)  LGA1851 socket
Chipset
Intel® Z890 Express Chipset
DIMM Slots
4 × DDR5 DIMM slots
Max Memory support
Up to 256GB (64GB per DIMM), Dual Channel, DDR5 up to 9500(O.C) MHz
PCI-E Slots
1 × PCIe 5.0 x16 (CPU) 1 × PCIe 4.0 x4 (Chipset) 1 × PCIe 4.0 x1 (Chipset)
M.2 Slots
5 × M.2 (1 × PCIe 5.0 x4, 4 × PCIe 4.0 x4/x2, 1 × SATA + PCIe 4.0 x4/x2)
SATA III
4 × SATA 6Gb/s ports
ARGB Headers
3 × Addressable RGB Gen2 headers
RGB Headers
1 × RGB LED header
Fan Headers
7 × (1 CPU, 1 CPU/WP, 4 System, 2 System/WP)
Front Type C Headers
1 × USB 3.2 Gen 2x2 Type-C header
Front USB 3 Headers
1 × USB 3.2 Gen 1 header
USB 2.0 Headers
2 × USB 2.0/1.1 headers (supports up to 4 ports)
Flash BIOS Buttons
1 × Q-Flash Plus button
Clear COMS Buttons
1 × Clear CMOS jumper
Onboard Graphics Outputs
1 × Thunderbolt™ 4 Type-C (DP/USB4 video output) 1 × Front HDMI port (HDMI 1.4, 1920×1080@30Hz)
USB Ports
4 × USB 2.0/1.1 4 × USB 3.2 Gen 1 2 × USB 3.2 Gen 2 Type-A
USB Type C Ports
1 × Thunderbolt™ 4 Type-C (rear) 1 × USB 3.2 Gen 2x2 Type-C (front)
Ethernet LAN Port
Realtek® 2.5GbE LAN
Bluetoooht & Wireless
Wi-Fi 7 (MediaTek MT7925 / Realtek RTL8922AE) + Bluetooth 5.4
Audio Jacks
2 × Audio jacks (Line Out, Mic In)
Optical
1 × Optical S/PDIF Out
Operating System
Windows 11 64-bit
Form Factor
ATX (30.5cm × 24.4cm)
